Product Summary

The CM600HU-12F is an IGBT module. Applications are (1)General purpose inverters; (2)Servo controls, etc.

Parametrics

CM600HU-12F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600 V; (2)Gate-emitter voltage, VGES: ±20 V; (3)Maximum collector dissipation, PC: 1420 W; (4)Junction temperature, Tj: -40 to 150 ℃; (5)Storage temperature, Tstg: -40 to 125 ℃; (6)Isolation voltage, Viso: 2500 V.

Features

CM600HU-12F features: (1)IC: 600 A; (2)VCES: 600 V; (3)Insulated type; (4)1-elements in a pack.

Diagrams

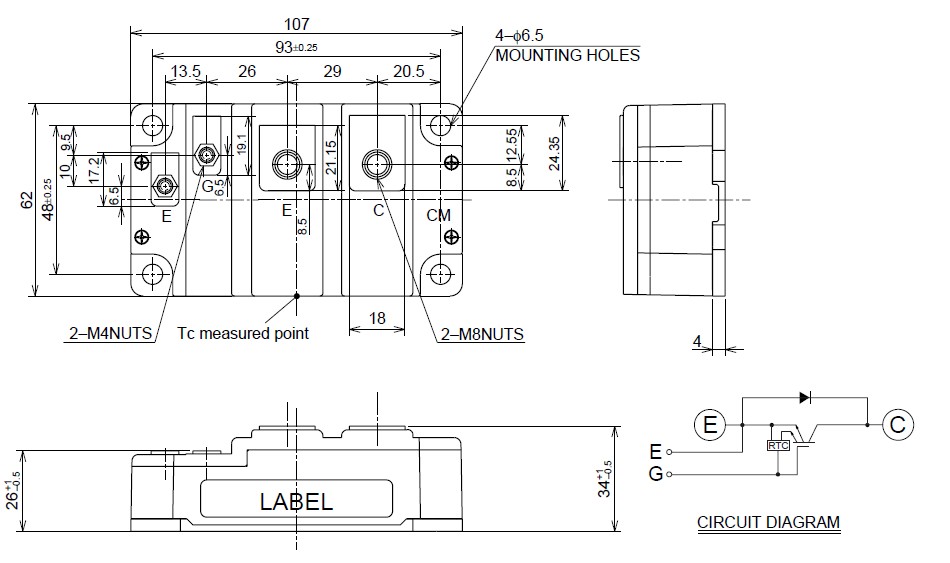

CM600HU-12F pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM600HU-12F
CM600HU-12F

IGBT MOD SGL 600V 600A F SER
Data Sheet
