Product Summary

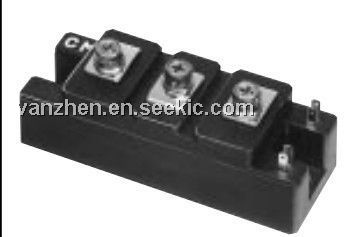

The CM50DY-24H is a Mitsubishi IGBT module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the CM50DY-24H are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Applications are (1)Motion/servo control; (2)UPS; (3)Welding power supplies; (4)Laser power supplies.
Parametrics
CM50DY-24H absolute maximum ratings: (1)Junction temperature Tj: -40 to 150 ℃; (2)Storage temperature Tstg: -40 to 125 ℃; (3)Collector-emitter voltage (G-E short) VCES: 600 Volts; (4)Gate-emitter voltage (C-E short) VGES: ±20 Volts; (5)Collector current (Tc = 25℃) IC: 50 Amperes; (6)Peak collector current (Tj ≤ 150℃) ICM: 100 Amperes; (7)Emitter current (Tc = 25℃) IE: 50 Amperes; (8)Peak emitter current IEM: 100 Amperes; (9)Maximum collector dissipation (Tc = 25℃) Pc: 250 Watts; (10)Mounting torque, M5 main terminal: 1.47 to1.96 N · m; (11)Mounting torque, M6 mounting: 1.96 to 2.94 N · m; (12)Weight:190 Grams; (13)Isolation voltage (main terminal to baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
CM50DY-24H features: (1)Low drive power; (2)Low VCE(sat); (3)Discrete super-fast recovery (135ns) free-wheel diode; (4)High frequency operation(20-25kHz); (5)Isolated baseplate for easy heat sinking.

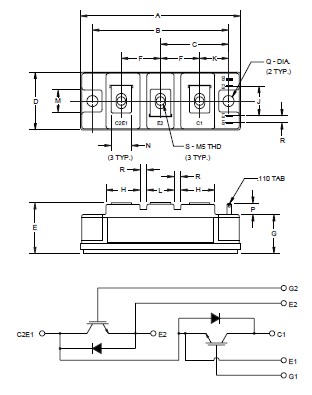

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

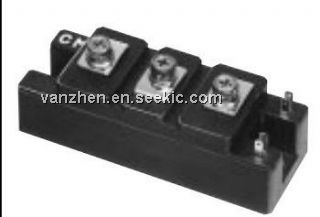

 CM50DY-24H |
|
IGBT MOD DUAL 1200V 50A H SER |
Data Sheet |
Negotiable |
|
||||
