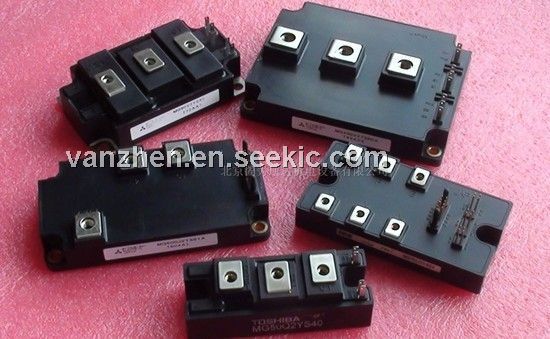

Product Summary
The CM300DY-28H is a high power switching use IGBT module. The CM300DY-28H is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking base plate, offering simplified system assembly and thermal management. The applications of the CM300DY-28H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
CM300DY-28H absolute maximum ratings: (1)Junction Temperature: –40 to 150 ℃; (2)Storage Temperature: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT): 1400 V; (4)Gate-Emitter Voltage (C-E SHORT): ±20 V; (5)Collector Current (TC = 25°C): 300 A; (6)Peak Collector Current: 600 A; (7)Emitter Current (TC = 25℃): 300 A; (8)Peak Emitter Current: 600 A; (9)Maximum Collector Dissipation: 2100 W; (10)Weight: 500 G.
Features
CM300DY-28H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Base plate for Easy Heat Sinking.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

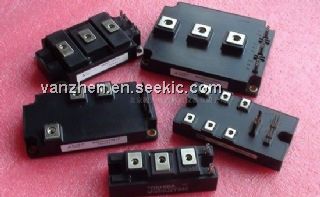

![]() CM300DY-28H |
![]() |
![]() IGBT MOD DUAL 1400V 300A H SER |
![]() Data Sheet |
![]() Negotiable |
|
||||||
