Product Summary

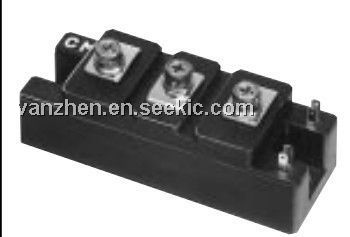

The CM100DY-12H is a high power switching use Mitsubishi IGBT module. Applications are (1)AC motor control; (2)Motion/servo control; (3)UPS; (4)Welding power supplies.

Parametrics

CM100DY-12H absolute maximum ratings: (1)Junction temerature: -40 to 150℃; (2)Storage temperature: -40 to 125℃; (3)Collector-emitter voltage: 600V; (4)Gate-emitter voltage: ±20V; (5)Collector current: 100A;(6)Peak collector current: 200A; (7)Peak emitter current: 200A; (8)Maximum collector dissipation: 400W.

Features

CM100DY-12H features: (1)Low drive power; (2)Low VCE; (3)Discrete super-fast recovery free-wheel diode; (4)High frequency operation; (5)Isolated baseplate for easy heat sinking.

Diagrams

CM100DY-12H pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM100DY-12H
CM100DY-12H


IGBT MOD DUAL 600V 100A H SER

Data Sheet

Negotiable
