Product Summary
The BSM400GA120DLCS E3226 is an IGBT module.
Parametrics
BSM400GA120DLCS E3226 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 625 A; (3)repetitive peak collector current, ICRM: 800 A; (4)total power dissipation, Ptot: 2500 W; (5)gate-emitter peak voltage, VGES: +/- 20V V; (6)DC forward current, IF: 400 A; (7)repetitive peak forw. current, IFRM: 800 A.
Features
BSM400GA120DLCS E3226 features: (1)Collector- Emitter Voltage VCEO Max: 1200 V; (2)Collector-Emitter Saturation Voltage: 2.1 V; (3)Continuous Collector Current at 25 C: 625 A; (4)Gate-Emitter Leakage Current: 400 nA; (5)Power Dissipation: 2500 W; (6)Maximum Operating Temperature: + 125℃; (7)Package / Case: 62MM; (8)Maximum Gate Emitter Voltage: +/- 20 V; (9)Minimum Operating Temperature: - 40℃; (10)Mounting Style: Screw; (11)Factory Pack Quantity: 500.

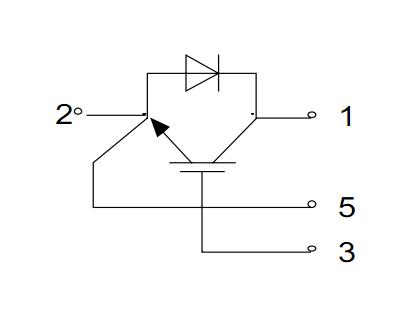

Diagrams
