Product Summary

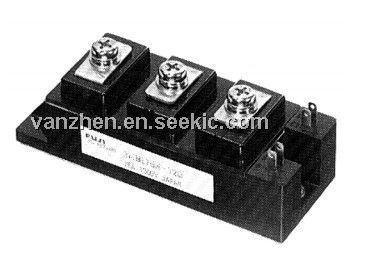

The 2mbI75s-120 is an IGBT module (S-series) . Applications of the 2mbI75s-120 include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2mbI75s-120 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 1200V; (2) Gate -Emitter Voltage VGES: ±20V; (3) Collecto Current IC: 100/75A (Continuous 25/80°C) , 200/150A (1ms 25/80°C) , -Ic: 75A (Continuous) ; (4) Max. Power Dissipation Pc: 600W; (5) Operating Temperature Tj: +150°C; (6) Storage Temperature Tstg: -40 to +125°C; (7) Isolation Voltage Vis: 2500V.
Features
2mbI75s-120 features: (1) NPT-Technology; (2) Square SC SOA at 10 x IC; (3) High Short Circuit Withstand-Capability; (4) Small Temperature Dependence of the Turn-Off Switching Loss; (5) Low Losses And Soft Switching.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI75S-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
