Product Summary

The 2MBI600U2E-060 is an IGBT Module. The applications of the 2MBI600U2E-060 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.

Parametrics

2MBI600U2E-060 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 650V; (2)Gate-Emitter voltage VGES: ±20V; (3)Collector current IC: 600A; (4)Collector Power Dissipation PC: 2400W; (5)Junction temperature Tj: 150℃; (6)Storage temperature Tstg: -40 to 125℃.

Features

2MBI600U2E-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

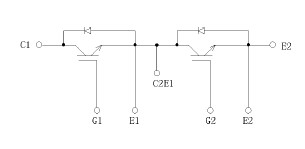

2MBI600U2E-060 block diagram
