Product Summary
The 2MBI300U4D-120 is an IGBT module. The applications of the 2MBI300U4D-120 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
2MBI300U4D-120 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1200V; (2)Gate-Emitter voltaga VGES: ±20V; (3)Collector Continuous Tc=25℃ IC: 400A; (4)current Tc=80℃: 300A; (5)Max. power dissipation PC: 2500W; (6)Operating temperature Tj: 150℃; (7)Storage temperature Tstg: -40 to 125℃.
Features
2MBI300U4D-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

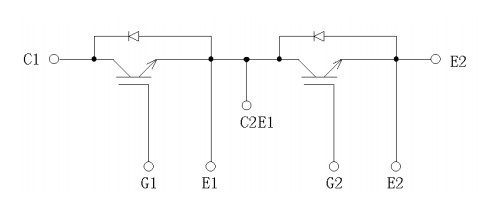

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300U4D-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
