Product Summary

The 2MBI200L-120 is an IGBT module. The applications of the 2MBI200L-120 include inverter for motor drive, AC and DC Servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.

Parametrics

2MBI200L-120 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200V; (2)Gate-emitter voltaga, VGES: ±20V; (3)Collector current: Continuous: Tc= 25℃, IC: 200A; IC pulse: 400A; -IC: 200A; 1ms, -IC pulse: 400A; (4)Max. power dissipation, PC: 1600W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage 1, Vis: AC2500(1min.)V; (8)Screw torque: Mounting 2: 3.5Nm; Terminals 2: 4.5Nm.

Features

2MBI200L-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

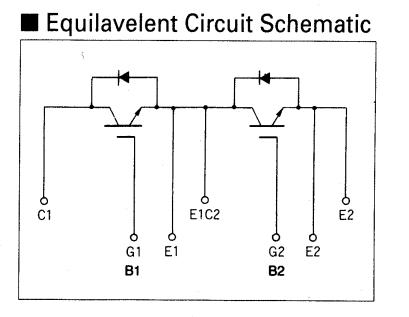

2MBI200L-120 pin connection
