Product Summary
The 2MBI150-060 is an IGBT module. Applications are (1)High power switching; (20A.C. Motor controls; (3)D.C. Motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI150-060 general specifications: (1)Circuits per package=2; (2)V(BR)CES (V)=600V; (3)V(BR)GES (V)=6.0V; (4)I(C) Abs.(A) collector current=150A; (5)Absolute max. power diss. (W)=600W; (6)V(CE)sat Max.(V)=5.0V; (7)t(d)off max. (s) off time=1.5us; (8)Maximum clock frequency:400 KHz; (9)Operating supply voltage:8.50V; (10)Maximum supply current:0.12 mA; (11)Maximum power dissipation:400 mW; (12)Maximum operating temperature:+ 180℃; (13)Minimum operating temperature:- 80℃.
Features
2MBI150-060 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (~3 times rated current).

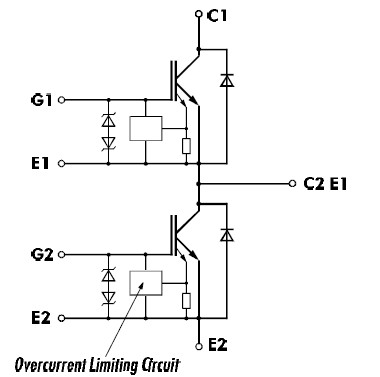

Diagrams
