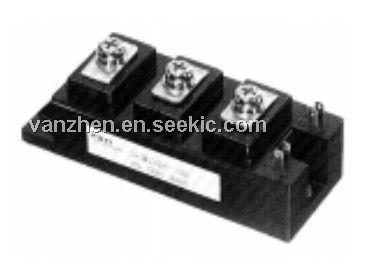

Product Summary

The 2MBI150KB-060 is an IGBT module. Its applications include high power switching, A.C. motor controls, D.C. motor controls amd uninterruptible power supply.

Parametrics

2MBI150KB-060 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 150A; 1ms, IC pulse: 300A; continuous, -IC: 150A; 1ms, -IC pulse: 300A; (4)max power dissipation, PC: 1100W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)isolation voltage, AC 1min, Vis: 2500V; (8)screw torque, mounting: 3.5Nm; terminals: 3.5Nm.

Features

2MBI150KB-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

Diagrams

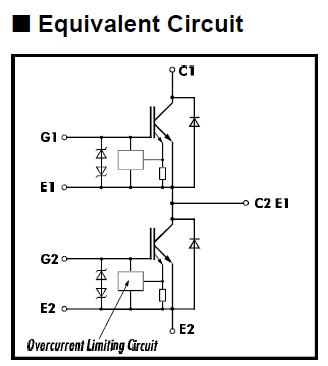

2MBI150KB-060 diagram
