Product Summary
The 2MBI150J-120 is an IGBT module. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI150J-120 absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Gate -emitter voltage: ± 20 V; (3)Collector current continuous IC: 150 A, 1ms IC pulse: 300 A, Continuous -IC: 150 A, 1ms -IC pulse: 300 A; (4)Max. power dissipation: 1100 W; (5)Operating temperature: +150 ℃; (6)Storage temperature: -40 to +125 ℃; (7)Isolation voltage A.C. 1min.: 2500 V; (8)Screw torque mounting 1: 3.5 Nm; Terminals 2: 4.5 Nm.
Features
2MBI150J-120 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (4~5 times rated current).

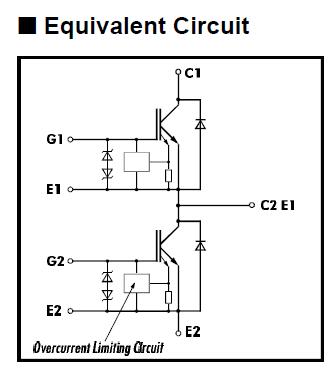

Diagrams
