The 2MBI100UA-120 is an IGBT module. Its applications include Inverter for Motor drive, AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.
Parametrics
2MBI100UA-120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)Collector Current Continuous, IC: 150 A; (4)Collector Current 1ms, IC PULSE: 100 A; (5)Collector Current Continuous, -IC: 300 A; (6)Collector Current 1ms, -IC PULSE: 200 A; (7)Max. Power Dissipation, PC: 540 W; (8)Operating Temperature, Tj: +150 ℃; (9)Storage Temperature, Tstg: -40 to +125 ℃; (10)Isolation Voltage A.C. 1min. Vis: 2500 V.
Features
2MBI100UA-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

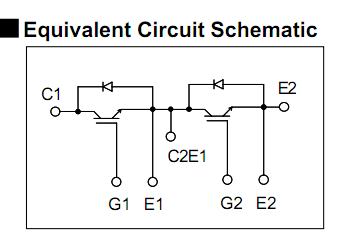

Diagrams
