Product Summary

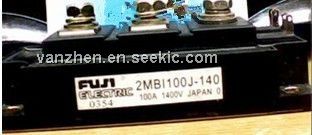

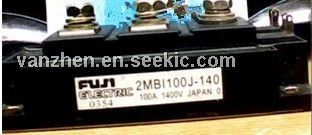

The 2MBI100J-140 is an IGBT module. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI100J-140 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1400 V; (2)Gate -emitter voltage VGES: ± 20 V; (3)Collector current continuous TC=25°C IC: 150 A,continuous TC=80°C IC: 100 A,1ms TC=25°C IC pulse: 300 A,1ms TC=80°C IC pulse: 200 A,-IC: 100 A,1ms -IC pulse: 200 A; (4)Max. power dissipation PC: 780 W; (5)Operating temperature Tj: +150 °C; (6)Storage temperature Tstg: -40 to +125 °C; (7)Isolation voltage A.C. 1min. Vis: 2500 V; (8)Screw torque mounting 1: 3.5 Nm; Terminals 2: 3.5 Nm.
Features
2MBI100J-140 features: (1)Square SC SOA at 10 x IC; (2)Simplified parallel connection; (3)Narrow distribution of characteristics; (4)High short circuit withstand-capability.
Diagrams
