Product Summary

The 1MBI600U4B-120 is an IGBT Module.

Parametrics

1MBI600U4B-120 absolute maximum ratings: (1)Collecter-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collecter current, continuous, IC: 600A; 1ms, ICpulse: 1200A; continous, -IC: 600A; 1ms, -IC pulse: 1200A; (4)Max. power dissipation, PC: 1200W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Net. weight: 415g; (8)Isolation voltage, AC.1min, Visol: 2500V.

Features

1MBI600U4B-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

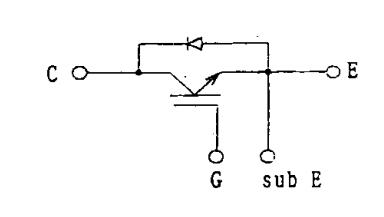

1MBI600U4B-120 block diagram
