1MBI300NP-120

1MBI300NP-120, IGBT module, 1200 V, 300 A, 2100 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $75.00~95.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	95.00 / Break
11 ~ 100 :	85.00 / Break
101 ~ 1000 :	75.00 / Break

PartNumber:: 1MBI300NP-120

Brand:: FUJI electric - FUJI | D/C: 14+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-27

From Other Seller

Part Number:1MBI300NP-120
US $75.00 - 95.00

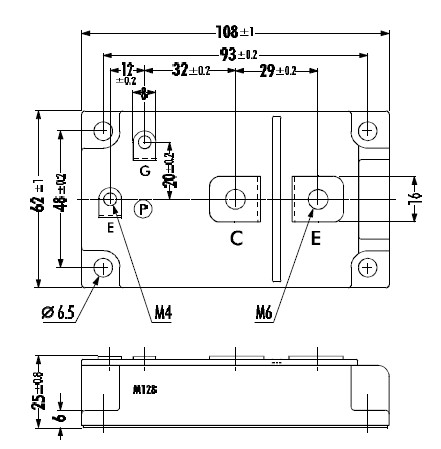

1MBI300NP-120 Trans IGBT Module N-CH 1.2KV 300A 4-Pin M128

US $8.60 - 12.60 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 1MBI300NP-120 is an IGBT module. The applications of the 1MBI300NP-120 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

1MBI300NP-120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200 V; (2)Gate -Emitter Voltage, VGES: ±20 V; (3)Continuous, IC: 300 A; (4)Collector 1ms, IC PULSE: 600 A; (5)Current Continuous, -IC: 300 A; (6)1ms -IC, PULSE: 600 A; (7)Max. Power Dissipation, PC: 2100 W; (8)Operating Temperature, Tj: +150℃; (9)Storage Temperature, Tstg: -40 to +125℃; (10)Isolation Voltage A.C. 1min, Vis: 2500 V.

Features

1MBI300NP-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).
