Product Summary

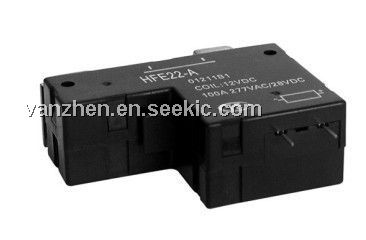

The HFE22 is a miniature high power latching relay.
Parametrics
HFE22 absolute maximum ratings: (1)insulation resistance: 1000MΩ at 500VDC; (2)creepage distance: 8mm; (3)operate time: 20ms max; (4)release time: 20ms max; (5)vibration resitance: 10 to 55Hz 1.5mm DA; (6)humidity: 5% to 85% RH; (7)ambient temperature: -40 to 70°C; (8)termination: QC.
Features
HFE22 features: (1)100A Latching relay; (2)Carrying test 1500A r.m.s(10ms) short circuit current without explosion; (3)Heavy load up to 27700VA; (4)4kV dielectric strength (between coil and contacts); (5)Micro switch on mounting board available; (6)Environmental friendly product (RoHS compliant) ; (7)Outline Dimensions: (60.0 x 40.0 x 21.0) mm.

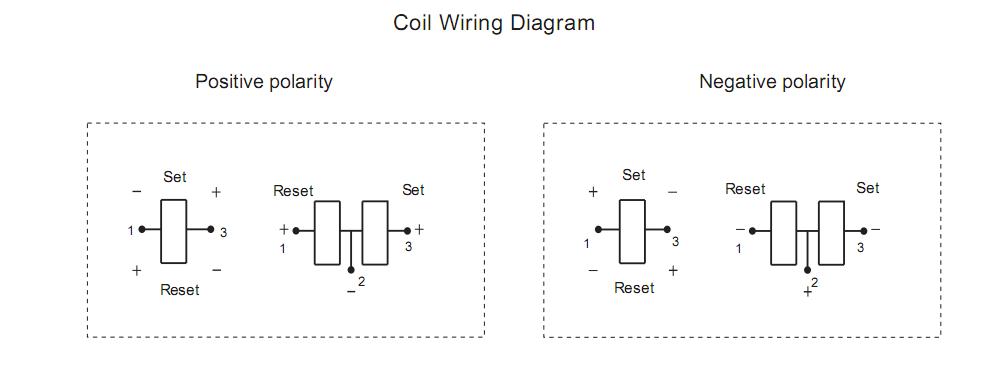

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFE22 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
HFE221MBFEF0KR |
|
CAP CER 220PF 6KV 20% RADIAL |
Data Sheet |
|
|
||||||
|
HFE222MBFEF0KR |
|
CAP CER 2200PF 6KV 20% RADIAL |
Data Sheet |
|
|
||||||
|
HFE222MBFEH0KR |
|
CAP CER 2200PF 6KV 20% RADIAL |
Data Sheet |
|
|
||||||
