Product Summary

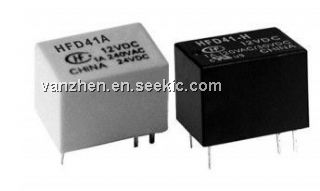

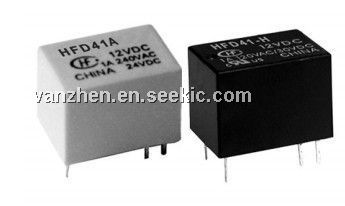

The HFD41/HFD41A is a subminiature signal relay.
Parametrics
HFD41/HFD41A absolute maximum ratings: (1)insulation resistance: 100MΩ at 500VDC; (2)operating time at nomin.volt: 10ms max; (3)release time at nomin.volt: 5ms max; (4)vibration resistance: 10Hz to 55Hz 1.5mm DA; (5)humidity: 5% to 85% RH; (6)ambient temperature: -25 to 70°C; (7)termination: PCB(DIP).
Features
HFD41/HFD41A features: (1)5A switching capability; (2)1 Form C configuration; (3)Standard PCB layout; (4)Plastic sealed and flux proofed types available; (5)Environmental friendly product (RoHS compliant); (6)Outline Dimensions: (15.7 x 11.0 x 12.0) mm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFD41/HFD41A |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
HFD4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HFD41/HFD41A |
Other |
|
Data Sheet |
Negotiable |
|
||||
