HFA4

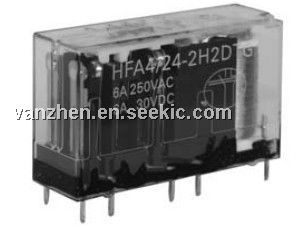

HFA4, safety relay, 30 VDC, 6 A, Hongfa Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece
1000 ~ 100000 :	0.50 / Piece

PartNumber:: HFA4

Brand:: Hongfa Technology - HONGFA | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-21

From Other Seller

Part Number:HFA4
US $0.50 - 1.00
Quantity:

piece

Product Summary

The HFA4 is a safety relay.

Parametrics

HFA4 absolute maximum ratings: (1)Contact arrangement: 2 NO + 2 NC; (2)Forcibly guided contacts Type: Type A; (3)Contact resistance: 100 mΩ max; (4)Contact material: AgSnO2; (5)Contact rating: 6 A 250 VAC/30 VDC; (6)Max.switching voltage: 400 VAC/30 VDC; (7)Max.switching current: 6 A; (8)Max.switching power: 1500 VA/180W; (9)Electrical endurance: 1 × 10 5OPS; (10)Mechanical endurance: 1 × 10 7OPS.

Features

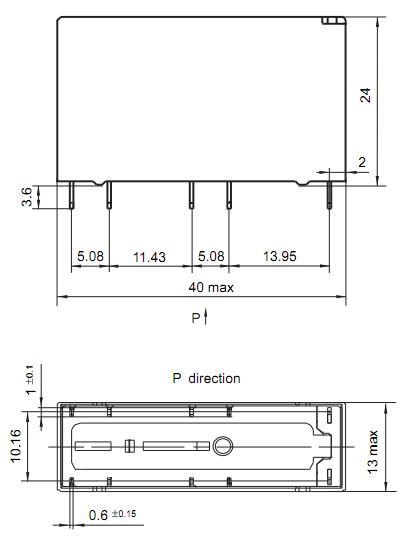

HFA4 features: (1)Multi contact arrangements: 2 NO + 2 NC, 3 NO + 1 NC; (2)Forcibly guided contacts according to EN50205; (3)6A switching capability; (4)Low input power: 360 mW; (5)High insulation capability: 10 kv surge voltage between input and output; (6)UL insulation system: Class F available; (7)Environmental fiendly product; (8)Outline Dimensions: (40.0 × 13.0 × 24.0) mm.
