Product Summary

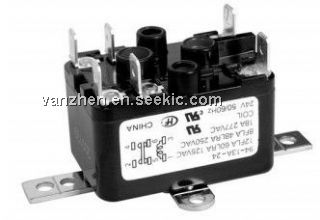

The HF94F is a high power relay.

Parametrics

HF94F absolute maximum ratings: (1)insulation resistance: 500MΩ at 500VDC; (2)operate time: 25ms max; (3)release time: 25ms max; (4)vibration resistance: 10 to 55Hz 1.5mm DA; (5)humidity: 5 to 85% RH; (6)ambient temperature: -40 to 65°C

Features

HF94F features: (1)25A switching capability; (2)2kV dielectric strength (between coil and contacts); (3)Panel mount, various terminal types; (4)UL insulation system: Class F; (5)Environmental friendly product (RoHS compliant); (6)Outline Dimensions: (47.0 x 32.0 x 28.5) mm.

Diagrams

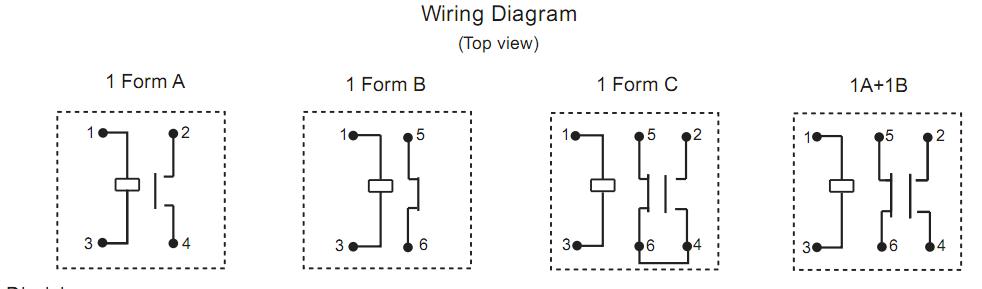

HF94F block diagram
