Product Summary

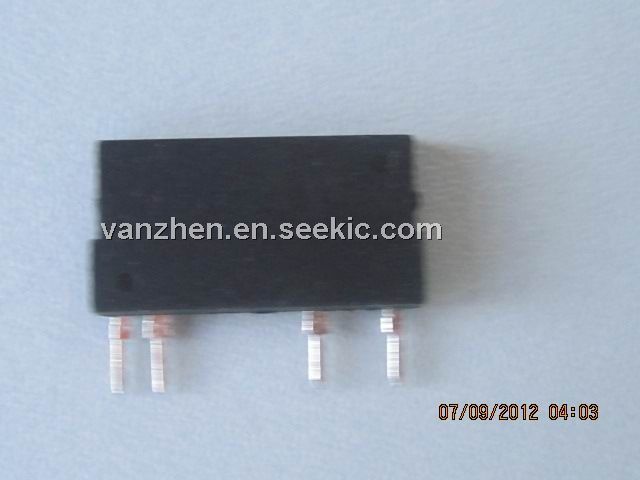

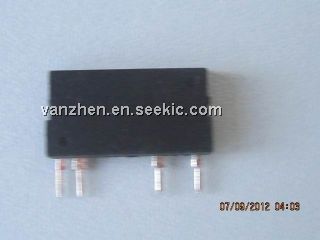

The AQZ207 is a PhotoMOS solid state relay.

Parametrics

AQZ207 absolute maximum ratings: (1)Output type: AC, DC; (2)On-state resistance: 1.1 Ohm; (3)Load current: 1A; (4)Voltage input: 1.16VDC; (5)Voltage load: 0 to 200V; (6)Mounting type: through hole; (7)Termination style: PC Pin; (8)Package / case: 4-SIP; (9)Packaging: tube; (10)Supplier device package: 4-SIL.

Features

AQZ207 features: (1)PhotoMOS solid state relay; (2)4-SIP board layout; (3)Circuit SPST-NO (1 form A).

Diagrams

AQZ207 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AQZ207
AQZ207

Panasonic Electric Works

Solid State Relays 1A 200V SPST

Data Sheet

0-1: $6.29
1-25: $5.78
25-50: $5.14
50-100: $4.36
AQZ207D
AQZ207D

Panasonic Electric Works

Solid State Relays 200v 1A SIL Form A Norm-Open

Data Sheet

0-1: $8.36
1-25: $7.66
25-50: $6.84
50-100: $5.81
AQZ207V
AQZ207V


RELAY OPTO AC/DC 85V 1A 4-SIP

Data Sheet

Negotiable
