Product Summary

The HF21FF is a subminiature high power relay.

Parametrics

HF21FF absolute maximum ratings: (1)insulation resistance: 1000MΩ(at 500VDC); (2)operate time: 10ms.max; (3)release time: 5ms.max; (4)shock resistance: 100m/s(2); (6)ambient temperature:-40 to 70°C.

Features

HF21FF features: ((1)15A switching capabolity; (2)extremely low cost; (3)1 Form A and 1 Form C configurations; (4)standard PCB layout; (5)wash tight & flux proofed types available; (6)environmental friendly product;(7)outline dimensions:20.2×16.5×20.2mm.

Diagrams

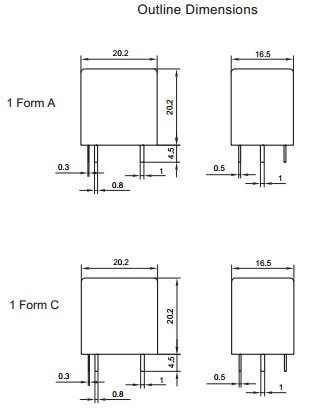

HF21FF outline dimension
