Product Summary

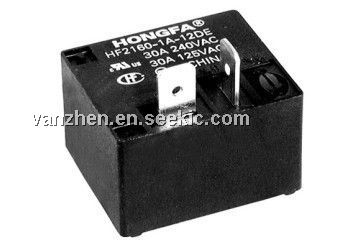

The HF2160 is a minimature high power relay.

Parametrics

HF2160 absolute maximum ratings: (1)insulation resistance: 1000MΩ at 500VDC; (2)operate time: 15ms max; (3)release time: 10ms max; (4)vibration resistance: 10 to 55Hz 1.5mm DA; (5)humidity: 98% RH, 40°C.

Features

HF2160 features: ((1)30A switching capability; (2)PCB coil terminals, ideal for heavy duty load; (3)2.5kV dielectric strength (between coil and contacts); (4)Plastic sealed and Dust protected types available; (5)UL insulation system: Class F available; (6)Environmental friendly product (RoHS compliant); (7)Outline Dimensions: (32 x 27.5 x 19.8) mm

Diagrams

HF2160 block diagram
