Product Summary

The HF161F is a standard recovery diode, (stud version). Applications are (1)Battery charges; (2)Converters; (3)Power supplies; (4)Machine tool controls; (5)Welding.



Parametrics

HF161F absolute maximum ratings: (1)IF(AV)TC: 140 to 110 °C; (2)IF(RMS): 62 A; (3)IFSM 60 Hz: 595 A; (4)I 2 t 50 Hz: 1600 A2 s; (5)VRRM Range 100 to 1200: 1400/1600 V; (6)TJ - 65 to 190: - 65 to 160 °C; (7)Maximum thermal resistance, junction to case RthJC DC operation: 0.95 K/W.

Features

HF161F features: (1)High surge current capability; (2)Stud cathode and stud anode version; (3)Leaded version available; (4)Types up to 1600 V VRRM ; (5)RoHS compliant; (6)Designed and qualified for multiple level.

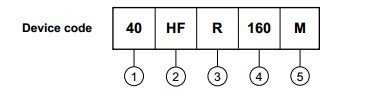

Diagrams

HF161F pin connection
