Product Summary

The HF152FD is a subminiature high power relay.

Parametrics

HF152FD absolute maximum ratings: (1)insulation resistance: 1000MΩ at 500VDC; (2)operate time: 10ms max; (3)release time: 5ms max; (4)vibration resistance: 10 to 55Hz 1.5mm DA; (5)humidity: 5% to 85% RH; (6)ambient temperature: -40 to 105°C; (7)termination: PCB.

Features

HF152FD features: (1)20A switching capability; (2)Ambient temperature meets 105℃; (3)High temperature load: 17A 277VAC at 105; (4)1 Form C and 1 Form A configurations available; (5)Double pins and Single pin terminal available, effectively reduce terminal temperature rise; (6)Product in accordance to EN 60335-1 available; (7)UL insulation system: Class F available; (8)Environmental friendly product (RoHS compliant); (9)Outline Dimensions: (21.2 x 16.0 x 20.6) mm.

Diagrams

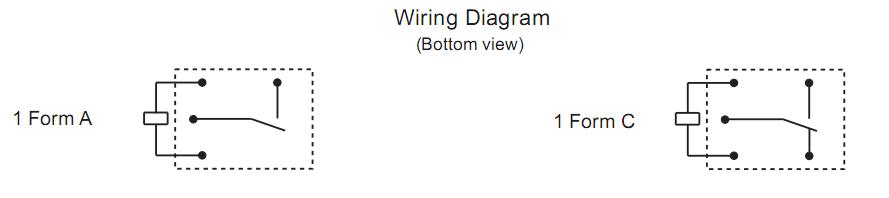

HF152FD block diagram
