Product Summary

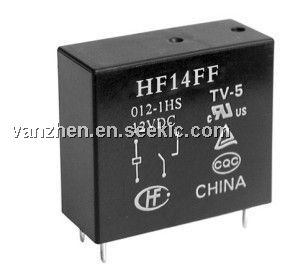

The HF140FF is a miniature intermediate power relay.
Parametrics
HF140FF absolute maximum ratings: (1)max. switching voltage: 250VAC/30VDC; (2)max. switching current: 10A; (3)max. switching power: 2500VAC/240W; (4)contact arrangement: 2A, 2C; (5)Ambient temperature: -40 to 85℃.
Features

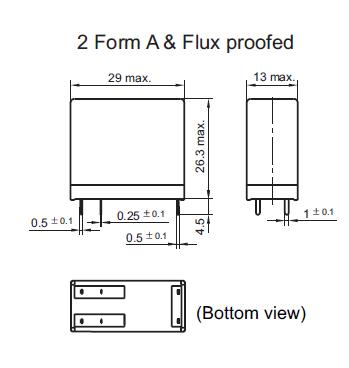

HF140FF features: (1)10A switching capability; (2)5kV dielectric strength (between coil and contacts); (3)2.0mm contact gap available; (4)Sockets available; (5)Plastic sealed and flux proofed types available; (6)UL insulation system: Class F available; (7)Environmental friendly product compliant); (8)Outline Dimensions: (29.0 x 13.0 x 26.3) mm.
