Product Summary

The HF13F is a miniature intermediate power relay.

Parametrics

HF13F absolute maximum ratings: (1)Contact arrangement: 1C, 2C; (2)Contact resistance: 100mΩ (at 1A 6VDC); (3)Max. switching power: 3750VA/450W; (4)Max. switching current: 15A/10A; (5)Max. switching voltage: 250VAC/30VDC.

Features

HF13F features: (1)15A switching capability; (2)Various terminals available; (3)Sockets available; (4)Conform to the CE low voltage directive; (5)1 & 2 pole configurations; (6)Environmental friendly product (RoHS compliant); (7)Outline Dimensions: (28.0 x 21.5 x 35.0)mm.

Diagrams

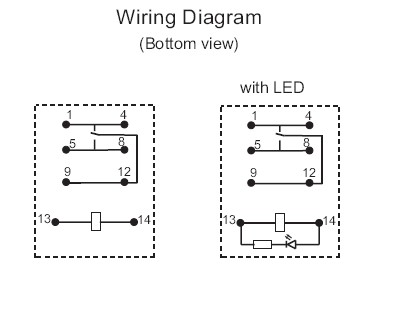

HF13F block diagram
