Product Summary

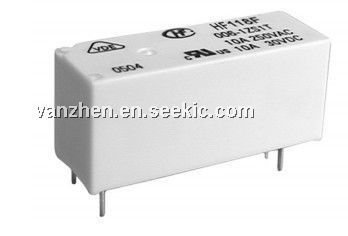

The HF118F 2 pole is a miniature high power relay.

Parametrics

HF118F 2 pole absolute maximum ratings: (1)insulation resitance: 1000MΩ at 500VDC; (2)surge voltage: 10kV; (3)operate time: 10ms max; (4)release time: 5ms max; (5)temeperature rise: 55k max; (6)ambient temperature: -40 to 85°C; (7)humidity: 35% to 85% RH; (8)termination: PCB.

Features

HF118F 2 pole features: (1)5A switching capability; (2)5kV dielectric strength (between coil and contacts); (3)Low height: 12.5 mm; (4)Creepage distance >8mm; (5)Meeting VDE 0700, 0631 reinforce insulation; (6)Product in accordance to IEC 60335-1 available; (7)2 pole configurations available; (8)UL insulation system: Class F ; (9)Sockets available; (10)Plastic sealed and flux proofed types available ; (11)Environmental friendly product (RoHS compliant); (12)Outline Dimensions: (28.5 x 10.1 x 12.5) mm.

Diagrams

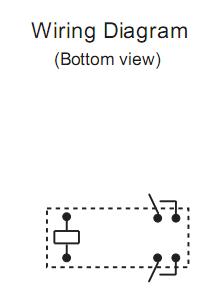

HF118F 2 pole blcok diagram
