Product Summary
The HF116F-2 is a miniature high power relay.
Parametrics
HF116F-2 absolute maximum ratings: (1)Insulation resistance: 1000MΩ(at 500VDC); (2)Operate time: 30ms.max; (3)Release time: 30ms.max; (4)Shock resistance: 100m/s(2); (5)Ambient temperature:-55 to 70°C.
Features

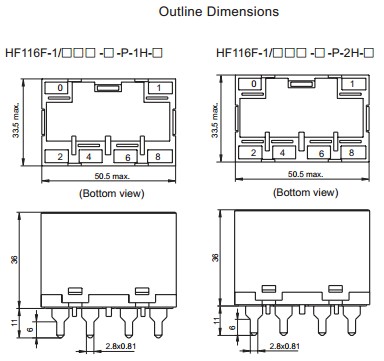

HF116F-2 features: (1)30A switching capability; (2)4kv dieletric strength; (3)Heavy load up to 7500VA; (4)Class F insulation avalaiable; (5)3mm contact gap avalaiable; (6)Environmental friendly product; (7)Outline dimensions 50.5×33.5×36.0mm.
Diagrams
