Product Summary

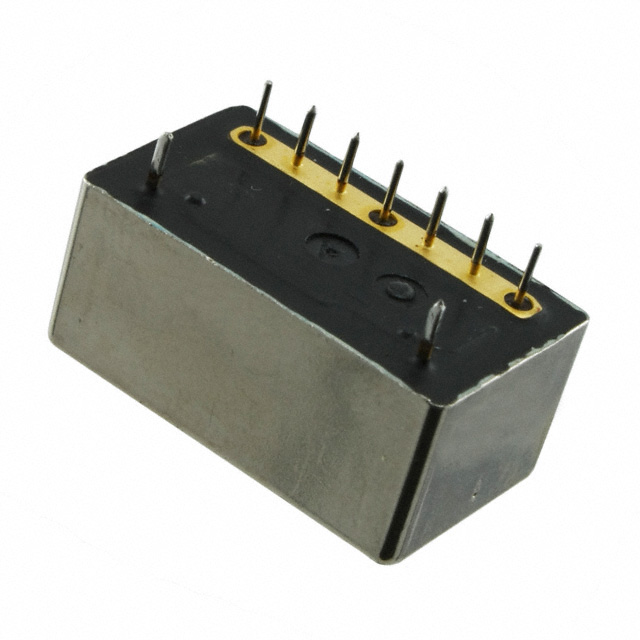

The ARXP1012 is a microwave relay. It is ideal for Base stations (mobile phones, terrestrial digital, etc.), High-frequency amp switching in wireless devices, etc..
Parametrics
ARXP1012 absolute maximum ratings: (1)Nominal switching capacity: 40W (at 2.5GHz, Impedance: 50 Ω , V.S.W.R.: Max. 1.2); (2)Contact carrying power Max.: 60W (at 2.5GHz, Impedance: 50 Ω , V.S.W.R.: Max. 1.2); (3)Max. switching voltage: 30 V DC; (4)Max. switching current: 0.5 A DC; (5)Nominal operating power: 400mW.
Features
ARXP1012 features: (1)60 W contact carrying power realized; (2)Excellent high frequency characteristics; (3)High sensitivity.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ARXP1012 |
Panasonic Electric Works |
General Purpose / Industrial Relays RELAY SPDT 3GHZ 60W 12VDC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
ARXP1012 |
Panasonic Electric Works |
General Purpose / Industrial Relays RELAY SPDT 3GHZ 60W 12VDC |
Data Sheet |
Negotiable |
|
||||
|
ARXP104H |
Panasonic Electric Works |
General Purpose / Industrial Relays RELAY SPDT 3GHZ 60W 4.5VDC |
Data Sheet |
Negotiable |
|
||||
|
ARXP1003 |
Panasonic Electric Works |
General Purpose / Industrial Relays RELAY SPDT 3GHZ 60W 3VDC |
Data Sheet |
Negotiable |
|
||||
 |
ARXP1024 |
Panasonic Electric Works |
General Purpose / Industrial Relays RELAY SPDT 3GHZ 60W 24VDC |
Data Sheet |
Negotiable |
|
||||
