Product Summary

The AGN20006 is a GN-relay which widely applied in telephone exchange, transmission equipment, communications device, measurement device, home appliances, and audio/visual equipment, handheld and portable product.

Parametrics

AGN20006 absolute maximum ratings: (1) Arrangement: 2 Form C; (2) Initial contact resistance, max. (By voltage drop 4.5V DC 1A): 100mW; (3) Contact material Stationary: AgPd+Au clad; (4) Movable: AgPd; (5) Nominal switching capacity (resistive load): 1A 30V DC, 0.3A 125V AC; (6) Max. Switching power (resistive load): 30W, 37.5V A; (7) Max. Switching voltage: 110V DC, 125V AC; (8) Max. Switching current: 1A.

Features

AGN20006 features: (1)Compact slim body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140mW; (6)Outstanding vibration and shock resistance.

Diagrams

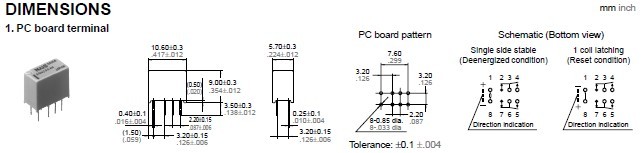

AGN20006 dimension
