Product Summary

The VI-JW2-IZ is a Half Brick DC-DC Converter. The device offers up to 100W of isolated and regulated power in a board mounted package. With thousands of input/output/power combinations, and with a maximum operating temperature rating of 100ⅹC, the VI-JWB-IW provides nearly unlimited flexibiliy for power system designers to meet demanding time to market requirements. Utilizing zero-current-switching forward converter technology, proven by an installed base of over 8 million units, the VI-JWB-IW combines state of the art power density with the efficiency, low noise and reliability required by next generation power systems.

Parametrics

VI-JW2-IZ absolute maximum ratings: (1)Input to output: 3000 VRMS; (2)Output to baseplate: 500 VRMS; (3)Input to baseplate: 1,500 VRMS.

Features

VI-JW2-IZ features: (1)RoHS compliant (VE versions); (2)Up to 50 Watts per cubic inch; (3)cULus, cTUVus; (4)CE Marked; (5)Up to 90% efficiency; (6)Size: 2.28 x 2.4 x 0.5 (57,9 x 61,0 x 12,7); (7)Remote sense and current limit; (8)Logic disable; (9)Wide range output adjust; (10)ZCS power architecture; (11)Low noise FM control.

Diagrams

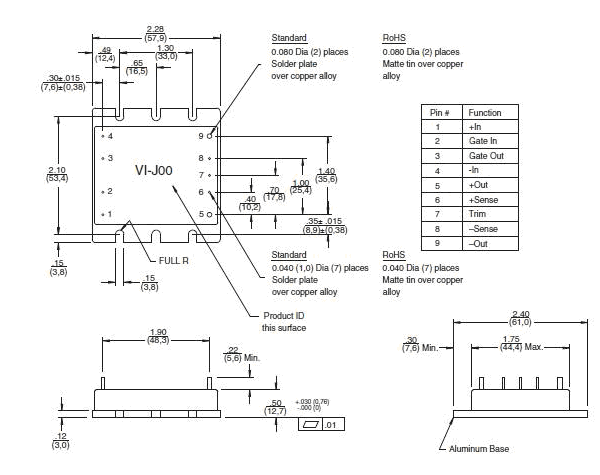

VI-JW2-IZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VI-JW2-IZ
VI-JW2-IZ


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $113.40
VI-JW2-IZ-B1
VI-JW2-IZ-B1


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $131.40
VI-JW2-IZ-F1
VI-JW2-IZ-F1


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $122.40
VI-JW2-IZ-F2
VI-JW2-IZ-F2


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $122.40
VI-JW2-IZ-F3
VI-JW2-IZ-F3


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $122.40
VI-JW2-IZ-F4
VI-JW2-IZ-F4


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $122.40
VI-JW2-IZ-S
VI-JW2-IZ-S


CONVERTER MOD DC/DC 15V 25W

Data Sheet

0-1: $119.40
