Product Summary
The VI-J6W-EY is a DC-DC Converter. The VI-J6W-EY establishes a new standard in component-level DC-DC converters. This “junior” size complement to the higher power VI-J6W-EY offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the MiniMod opens new horizons for board-mounted (distributed) power architectures.
Parametrics
VI-J6W-EY absolute maximum ratings: (1)Gate out impedance: 50 Ohms; (2)Gate in impedance: 103 Ohms; (3)Gate in open circuit voltage: 6 V; (4)Gate in low threshold: 0.65 V; (5)Gate in low current: 6 mA.
Features
VI-J6W-EY features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28" x 2.4" x 0.5" (57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

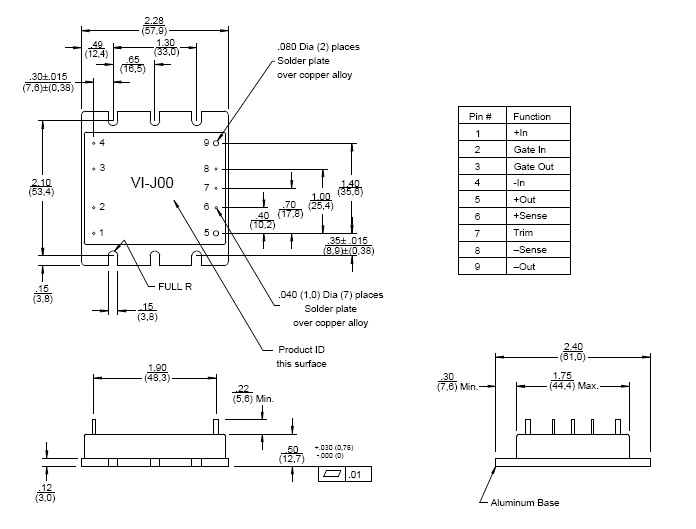

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-J6W-EY |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-B1 |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-F1 |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-F2 |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-F3 |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-F4 |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
|
VI-J6W-EY-S |
|
CONVERTER MOD DC/DC 5.5V 50W |
Data Sheet |
|
|
||||||
