Product Summary
The VI-J22-IY is a DC-DC converter. The VVI-J22-IY established a new standard in component-level DC-DC converters. This junior size complement to the VI-J22-IY offers up to 100 W of isolated and regulated power in a board mounted package. With thousands of input/output/power combinations, and with a maximum operating temperature rating of 100°C, the MiniMod provides nearly unlimited flexibiliy for power system designers to meet demanding time to market requirements. Utilizing Vicors zero-current-switching forward converter technology, proven by an installed base of over 8 million units, the MiniMod family combines state of the art power density with the efficiency, low noise and reliability required by next generation power systems.
Parametrics
VI-J22-IY absolute maximum ratings: (1)No load power dissipation: 1.35 to 2 Watts; (2)Output ripple: 100 to 150 mV; (3)Gate in low threshold: 0.65 Volts; (4)Gate in low current: 6 mA.
Features
VI-J22-IY features: (1)RoHS compliant (VE versions); (2)Up to 50 Watts per cubic inch; (3)cULus, cTVus; (4)CE Marked; (5)Up to 90% efficiency; (6)Remote sense and current limit; (7)Logic disable; (8)Wide range output adjust; (9)ZCS power architecture; (10)Low noise FM control; (11)Isolated output.

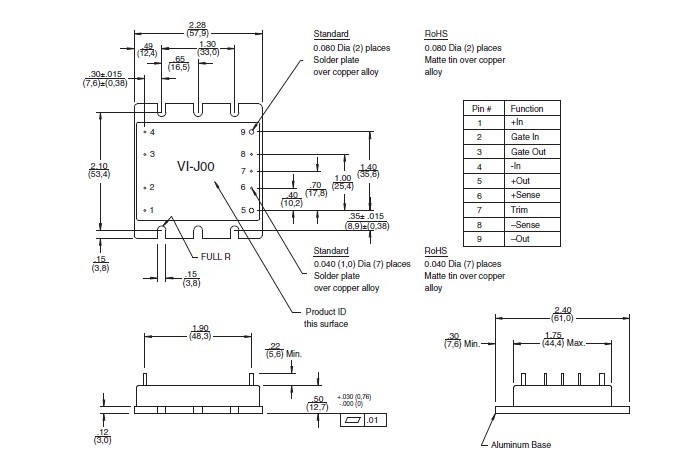

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-J22-IY |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-B1 |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-F1 |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-F2 |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-F3 |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-F4 |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
|
VI-J22-IY-S |
|
CONVERTER MOD DC/DC 15V 50W |
Data Sheet |
|
|
||||||
