Product Summary

The PH100F24-5 is a Full function, 50 to 300W DC-DC converter.

Parametrics

PH100F24-5 absolute maximum ratings: (1)Input range VDC: 36-76V; (2)Output Voltage Adj. Range VDC: 2~6; (3)Line Regulation: 0.4% or 20mV (whichever is greater) over entire input range with constant load; (4)Load Regulation: 0.8% or 40mV (whichever is greater) from no load to full load with constant input line; (5)Ripple and Noise pk-p: 240mV; (6)Operating Temperature Range - Baseplate temperature: -20 to +85℃; (7)Storage Temperature: -40 to +85℃; (8)Temperature Coefficient: 0.02%/℃.

Features

PH100F24-5 features: (1)High Density; (2)Wide Range Input; (3)Wide output adjustment capability; (4)Remote On/Off; (5)Fixed Switching Frequency; (6)International Safety Approvals; (7)Parallel Operation; (8)Low component count; (9)Signals to support N+1 redundancy.

Diagrams

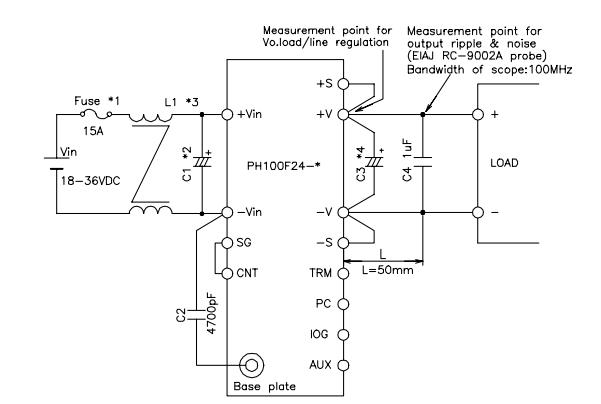

PH100F24-5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PH100F24-5
PH100F24-5

TDK-Lambda

DC/DC Converters 100W 5V 20A

Data Sheet

0-1: $105.19
1-10: $95.40
