Product Summary
The PAF500F48-28 is a 24V & 48V Input Full Brick DC-DC Converter.
Parametrics
PAF500F48-28 absolute maximum ratings: (1)Nominal Output Voltage: 12 VDC; (2)Output Current (Max): 42 A; (3)Max Output Power: 504 W; (4)Efficiency (Typ): 89 %; (5)Input Voltage range: 19-36 or 36-76 VDC; (6)Input Current (Typ) (24V/48V): 23.8 / 12.1 A; (7)Output Voltage Accuracy: ±1 %; (8)Output Voltage Adjustment: 7.2 - 13.2 VDC; (9)Max Ripple & Noise: 200 mV; (10)Max Line Regulation: 24 mV; (11)Max Load Regulation: 24 mV; (12)Overcurrent Protection: 105 - 140%; (13)Overvoltage Protection: 115-135 %.
Features
PAF500F48-28 features: (1)Wide adjustment range; (2)Parallel Pin; (3)ASIC Design; (4)No potting materials.

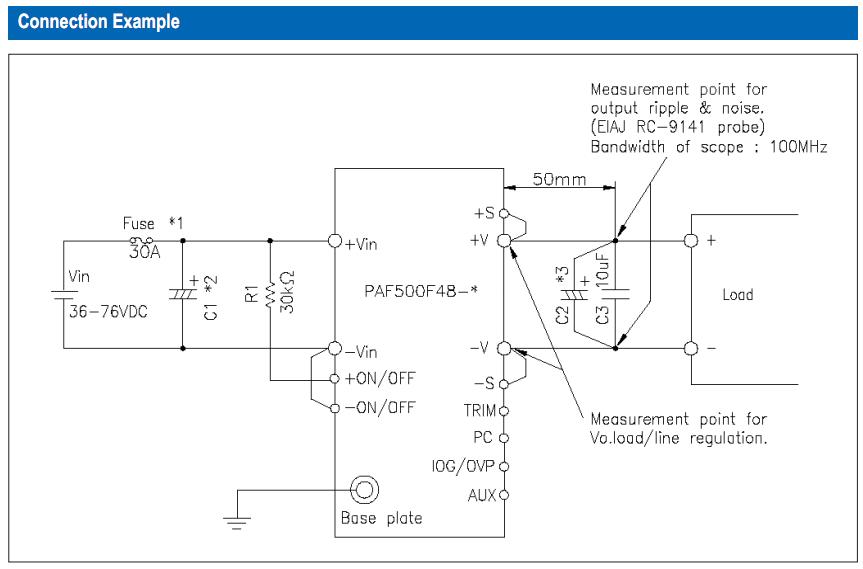

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PAF500F48-28 |
TDK-Lambda |
DC/DC Converters 504W 28V 18A |
Data Sheet |
|
|
||||||||
|
PAF500F48-28/T |
TDK-Lambda |
DC/DC Converters 504W 28V 18A |
Data Sheet |
|
|
||||||||
