Product Summary

The KWS10-15 HFP is an AC-DC on-board type power supply.

Parametrics

KWS10-15 HFP absolute maximum ratings: (1)Input voltage range: 85 ~ 132VAC(47 ~ 440Hz), 110 ~ 175VDC; (2)Output voltage range: Fixed; (3)Cooling Convection: cooling ; (4)Operating temperature (Standard mounting): –10 ~ +70°C, –10°C: 80%, 0 ~ +50°C: 100%, +60°C: 60%, +70°C: 25%; (5)Withstand voltage: Input–output, input–FG: 2kVAC, output–FG: 500VAC for 1 min.

Features

KWS10-15 HFP features: (1)Compact on-board type AC-DC power supply; (2)Input 85 ~ 132VAC; (3)Wide Variation; (4)Output power: 5W, 10W, 15W types; (5)Output voltage: 5V, 12V, 15V types; (6)Over current and Over voltage protection; (7)1 year warranty.

Diagrams

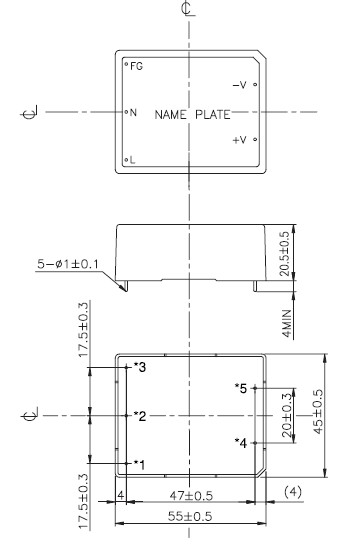

KWS10-15 HFP dimension
