Product Summary

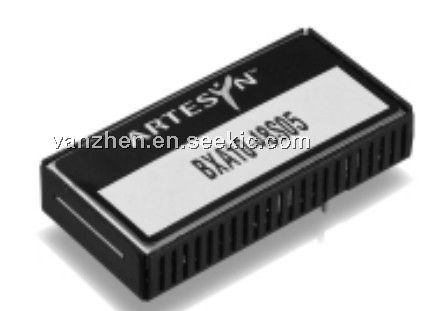

The BXA10-48S05 is a power DC/DC converter. It is designed for a wide range of applications including communications, industrial systems and mobile battery powered systems. The BXA10-48S05 has wide input ranges of 9-18VDC and 18-75VDC, and is available in single and dual output versions.

Parametrics

BXA10-48S05 absolute maximum ratings: (1)Isolation voltage Input/output: 1500VDC; (2)Isolation voltage input or output to case: 1000VDC; (3)Switching frequency Fixed: 400kHz; (4)Start up surge current resistive load: 1.5A; (5)Thermal performance operating ambient (See derating curve): -25℃ to +71℃; (6)Thermal performance non-operating amb.: -55℃ to +125℃; (7)Thermal performance Case: +110℃.

Features

BXA10-48S05 features: (1)1 x 2 x 0.395 inch package with stand-offs; (2)13.3 Watts/in3 power density; (3)CISPR22 and EN55022 conducted emission level A; (4)UL, CSA and VDE approvals (48V input only); (5)Continuous short circuit protection; (6)Optional remote ON/OFF.

Diagrams

BXA10-48S05 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BXA10-48S05
BXA10-48S05

Emerson / Astec Power

DC/DC Converters 10W 5V 2A

Data Sheet

Negotiable
BXA10-48S05J
BXA10-48S05J

Emerson / Astec Power

DC/DC Converters 10W 5V 2A

Data Sheet

0-1: $42.62
1-10: $38.99
10-25: $35.59
25-50: $32.17
BXA10-48S05-S
BXA10-48S05-S


CONV DC/DC SNGL 5VOUT 10W REMOTE

Data Sheet

Negotiable
