Product Summary

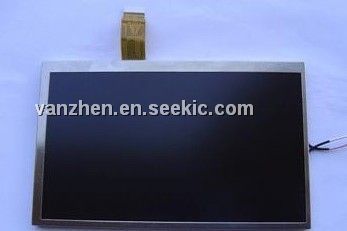

The TM070RDH01 is a LED Backlight TFT Display.
Parametrics
TM070RDH01 absolute maximum ratings: (1)VDD1: -0.50 to 5.00 V; (2)VDD2: -0.50 to 13.50 V; (3)VGG: -0.30 to 40.00 V; (4)VEE: -20.00 to 0.30 V; (5)VGG-VEE: -0.30 to 40.00 V; (6)Backlight Forward Current ILED: 25.00 mA For each LED; (7)Operating Temperature TOPR: -20 to 70 ℃; (8)Storage Temperature TSTG: -30 to 80 ℃.
Features
TM070RDH01 features: (1)Size: 6.95 inch; (2)Resolution: 800(RGB)x 480; (3)Interface: RGB 18 bits without TCON; (4)Color Depth: 262K; (5)Technology Type: a-Si; (6)Pixel Pitch (mm): 0.1965x0.1715; (7)Pixel Configuration: R.G.B. Vertical Stripe; (8)Display Mode: TM with Normally White; (9)Surface Treatment(Up Polarizer): Anti Glare; (10)Viewing Direction: 12 o’clock; (11)Gray Scale Inversion Direction: 6 o’clock.
Diagrams
