Product Summary
The XC0900P-10S is a low profile, high performance 10dB directional coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for AMPS band applications. The XC0900P-10S is designed particularly for power and frequency detection, as well as for power injection for example in feed-forward, where tightly controlled coupling and low insertion loss is required. It can be used in high power applications up to 55 Watts.
Parametrics
XC0900P-10S absolute maximum ratings: (1)Frequency: 800-1000 MHz; 869-894 MHz; 925-960 MHz; (2)Power: 45 Avg. CW Watts; 55 Avg. CW Watts; 50 Avg. CW Watts; (3)Operating Temp. : -55 to +85 °C.
Features
XC0900P-10S features: (1)800 – 1000 MHz; (2)AMPS; (3)Very Low Loss; (4)High Directivity; (5)Tight Coupling; (6)Production Friendly; (7)Tape and Reel; (8)Lead-Free; (9)Reliable, FIT=0.49.

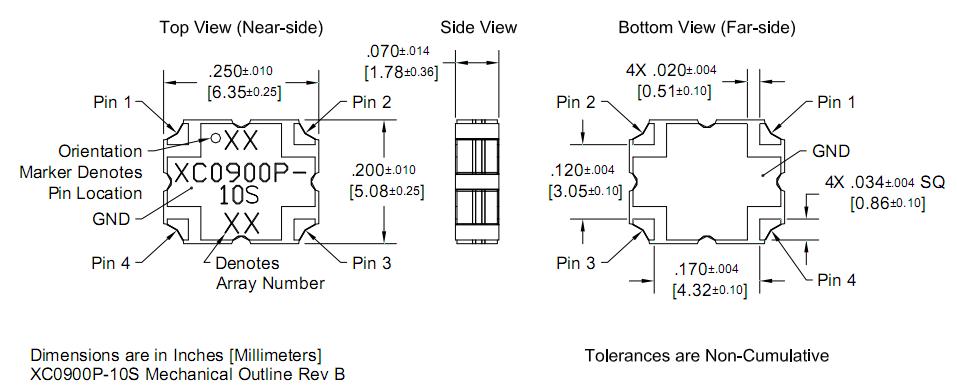

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC0900P-10S |
Other |
|
Data Sheet |
Negotiable |
|
||||||
