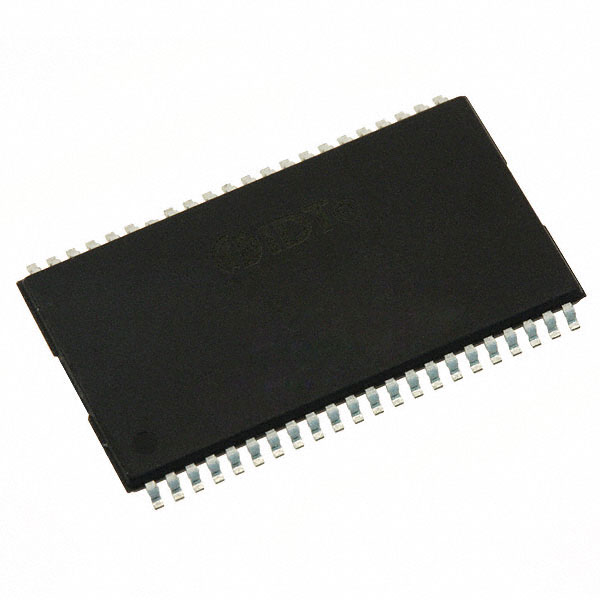

Product Summary
The IDT71016S15PHG is a 1,048,576-bit high-speed Static RAM organized as 64K x 16. It is fabricated using IDT high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs. The IDT71016S15PHG has an output enable pin which operates as fast as 7ns, with address access times as fast as 12ns. All bidirectional inputs and outputs of the IDT71016S15PHG are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
Parametrics
IDT71016S15PHG absolute maximum ratings: (1)VTERM,Terminal Voltage with Respect to GND: -0.5 to +7.0 V; (2)TA, Operating Temperature: 0 to +70℃; (3)TBIAS, Temperature Under Bias: -55 to +125℃; (4)TSTG, Storage Temperature: -55 to +125℃; (5)PT, Power Dissipation: 1.25 W; (6)IOUT, DC Output Current: 50 mA.
Features
IDT71016S15PHG features: (1)64K x 16 advanced high-speed CMOS Static RAM; (2)Equal access and cycle times: Commercial and Industrial: 12/15/20ns; (3)One Chip Select plus one Output Enable pin; (4)Bidirectional data inputs and outputs directly TTL compatible; (5)Low power consumption via chip deselect; (6)Upper and Lower Byte Enable Pins; (7)Commercial and industrial product available in 44-pin; (8)Plastic SOJ package and 44-pin TSOP package.

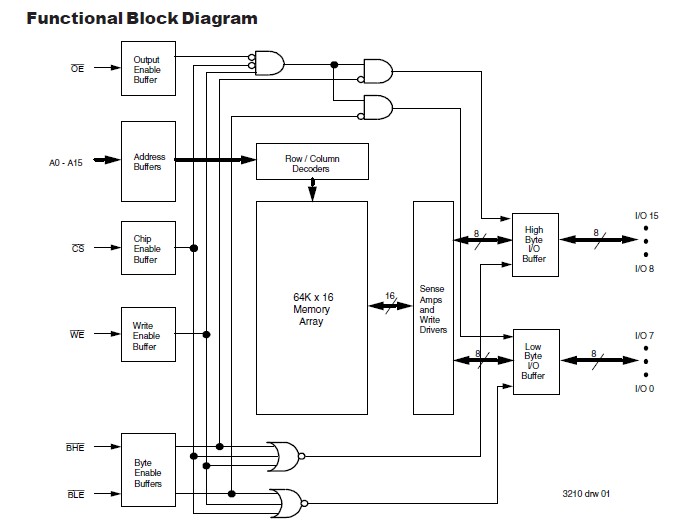

Diagrams
