TXS0108EPWR

TXS0108EPWR, 8-bit noninverting translator, TSSOP, 50mA, -0.5 to 4.6V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TXS0108EPWR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:TXS0108EPWR
US $0.30 - 0.50
Quantity:

piece

Product Summary

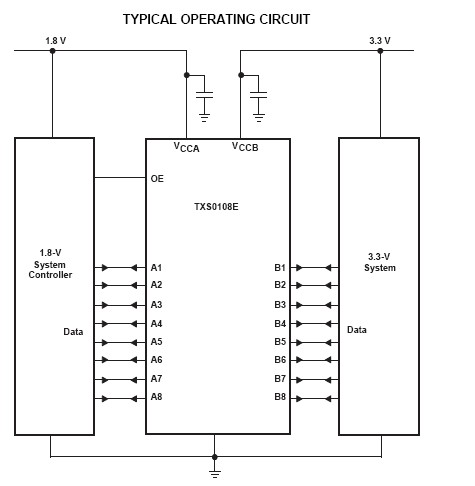

The TXS0108EPWR is an 8-bit noninverting translator. The TXS0108EPWR uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the TXS0108EPWR is determined by the current-sourcing capability of the driver.

Parametrics

TXS0108EPWR absolute maximum ratings: (1)VCCA Supply voltage range: –0.5 to 4.6 V; (2)VCCB Supply voltage range: –0.5 to 5.5 V; (3)A port: –0.5 to 4.6V; (4)VI Input voltage range(2) V B port :–0.5 to 6.5V; (5)A port: –0.5 to VCCA + 0.5V; (6)VO Voltage range applied to any output in the high or low state(2) (3) V B port: –0.5 to VCCB + 0.5V; (7)IIK Input clamp current VI ＜0: –50 mA; (8)IOK Output clamp current VO＜ 0: –50 mA; (9)IO Continuous output current: ±50 mA; (10)Continuous current through VCCA, VCCB, or GND: ±100 mA; (11)Tstg Storage temperature range –65 to 150℃.

Features

TXS0108EPWR features: (1)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA≤VCCB); (2)VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State; (3)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (4)ESD Protection Exceeds JESD 22 (A Port): 2000-V Human-Body Model (A114-B); (5)150-V Machine Model (A115-A); (6)IEC 61000-4-2 ESD (B Port).
