TS5A3159ADCKR

TS5A3159ADCKR, SPDT analog switch, SC, 5.0V, 1Ω, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: TS5A3159ADCKR

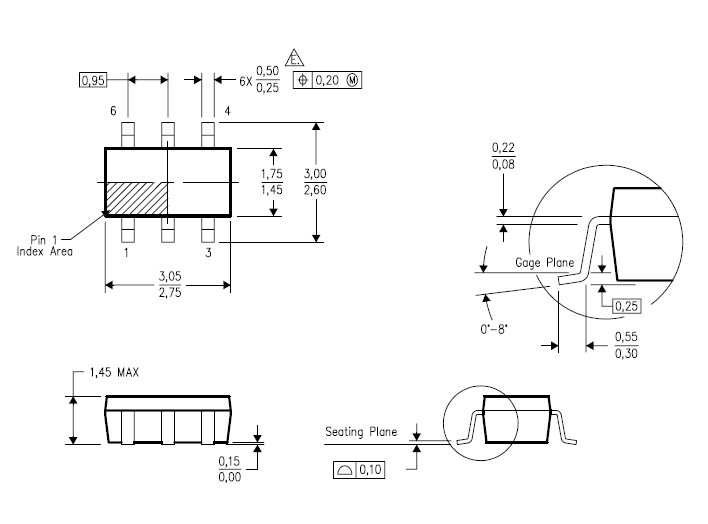

Brand:: Texas Instruments - TI | Pack: SC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:TS5A3159ADCKR
US $0.30 - 0.50
Quantity:

piece

Product Summary

The TS5A3159ADCKR is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A3159ADCKR offers low on-state resistance and excellent on-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The TS5A3159ADCKR has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The applications of the TS5A3159ADCKR include Cell Phones, PDAs, Portable Instrumentation, Audio and Video Signal Routing, Low-Voltage Data Acquisition Systems, Communication Circuits, Modems, Hard Drives, Computer Peripherals and Wireless Terminals and Peripherals.

Parametrics

TS5A3159ADCKR absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Analog voltage range: –0.5 to V+ + 0.5 V; (3)Digital input voltage range: –0.5 to 6.5 V; (4)Digital input clamp current: –50 mA; (5)Continuous current through: 100 mA; (6)Continuous current through GND: –100 to 100 mA; (7)Storage temperature range: –65 to 150 ℃.

Features

TS5A3159ADCKR features: (1)Isolation in Power-Down Mode, V+ = 0; (2)Pin Compatible With TS5A3159; (3)Specified Break-Before-Make Switching; (4)Low On-State Resistance (1 Ω); (5)Control Inputs Are 5.5-V Tolerant; (6)Low Charge Injection; (7)Excellent On-State Resistance Matching; (8)Low Total Harmonic Distortion (THD); (9)1.65-V to 5.5-V Single-Supply Operation.
