TPS54622RHLT

Product Summary

The TPS54622RHLT is a step down converter. The TPS54622RHLT in thermally enhanced 3.5mm x 3.5mm QFN package is a full featured 17V, 6A synchronous step down converter which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and by selecting a high switching frequency, reducing the inductors footprint. Applications are (1)High Density Distributed Power Systems; (2)High Performance Point of Load Regulation; (3)Broadband, Networking and Optical Communications Infrastructure.

Parametrics

TPS54622RHLT absolute maximum ratings: (1)Input Voltage VIN: –0.3 to 20 V; (2)Input Voltage PVIN: –0.3 to 20 V; (3)Input Voltage EN: –0.3 to 6 V; (4)Input Voltage BOOT: –0.3 to 27 V; (5)Input Voltage VSENSE: –0.3 to 3 V; (6)Input Voltage COMP: –0.3 to 3 V; (7)Input Voltage PWRGD: –0.3 to 6 V; (8)Input Voltage SS/TR: –0.3 to 3 V; (9)Input Voltage RT/CLK: –0.3 to 6 V; (10)Output Voltage BOOT-PH: 0 to 7.5 V; (11)Output Voltage PH: –1 to 20 V; (12)Output Voltage PH 10ns Transient: –3 to 20 V; (13)Vdiff (GND to exposed thermal pad): –0.2 to 0.2 V; (14)Source Current RT/CLK: ±100 μA; (15)Source Current PH: Current Limit A; (16)Sink Current PH: Current Limit A; (17)Sink Current PVIN: Current Limit A; (18)Sink Current COMP: ±200 μA; (19)Sink Current PWRGD: –0.1 to 5 mA; (20)Electrostatic Discharge (HBM)QSS 009-105 (JESD22-A114A): 2 kV; (21)Electrostatic Discharge (CDM)QSS 009-147 (JESD22-C101B.01): 500 V; (22)Operating Junction Temperature: –40 to 150 °C; (23)Storage Temperature: –65 to 150 °C.

Features

TPS54622RHLT features: (1)Integrated 26mΩ / 19mΩ MOSFETs; (2)Split Power Rail: 1.6V to 17V on PVIN; (3)200kHz to 1.6MHz Switching Frequency; (4)Synchronizes to External Clock; (5)0.6V ±1% Voltage Reference Over Temperature; (6)Low 2uA Shutdown Quiescent Current; (7)Monotonic Start-Up into Pre-biased Outputs; (8)–40°C to 150°C Operating Junction; (9)Adjustable Slow Start/Power Sequencing; (10)Power Good Output Monitor for Undervoltage.

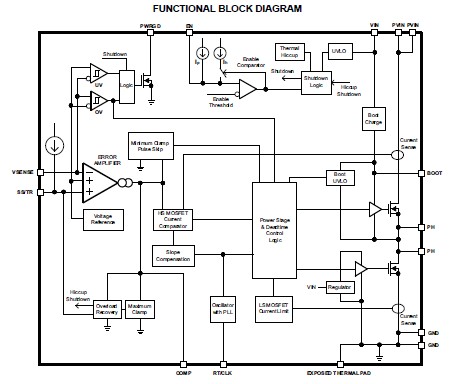

Diagrams
