Product Summary
The MMBD1403 is a small signal diode.
Parametrics
MMBD1403 absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 200 V; (2)IF(AV) Average Rectified Forward Current: 200 mA; (3)IFSM Non-repetitive Peak Forward Surge Current: 1.0A; (4)Tstg Storage Temperature Range: -55 to +150 ℃; (5)TJ Operating Junction Temperature: 150 ℃.
Features
MMBD1403 features: (1)VR Breakdown Voltage IR = 100 μA: 200 V; (2)VF Forward Voltage IF = 10 mA: 760 to 920mV; (3)IR Reverse Current VR = 120 V: 40nA; (4)CT Total Capacitance VR = 0, f = 1.0 MHz: 2.0 pF; (5)trr Reverse Recovery Time: 50 ns.

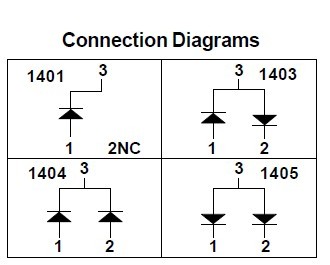

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMBD1403 |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose |
Data Sheet |
|
|
||||||||||||
 |
MMBD1403_L99Z |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose Diode |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD1403A |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose |
Data Sheet |
|
|
||||||||||||
|
MMBD1403_Q |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD1403_L99Z_Q |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose Diode |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD1403A_Q |
Fairchild Semiconductor |
Rectifiers High Voltage General Purpose |
Data Sheet |
Negotiable |
|
||||||||||||
