TPS2042BDR

Product Summary

The TPS2042BDR is a current-limited, power-distribution switch. The TPS2042BDR is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The TPS2042BDR incorporates 70-mW N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. The applications of the TPS2042BDR include Heavy Capacitive Loads, Short-Circuit Protections.

Parametrics

TPS2042BDR absolute maximum ratings: (1)Input voltage range, VI(IN), VI(INx) (2): -0.3 V to 6 V; (2)Output voltage range, VO(OUT), VO(OUTx) (2): -0.3 V to 6 V; (3)Input voltage range, VI(EN), VI(ENx), VI(EN), VI(ENx): -0.3 V to 6 V; (4)Voltage range, VI(/OC), VI(OCx): -0.3 V to 6 V; (5)Continuous output current, IO(OUT), IO(OUTx): Internally limited; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating virtual junction temperature range, TJ: -40 to 125℃; (8)Storage temperature range, Tstg: -65 to 150℃; (9)Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Human body model MIL-STD-883C: 2 kV; (11)Electrostatic discharge (ESD) protection Charge device model (CDM): 500 V.

Features

TPS2042BDR features: (1)70-mΩ High-Side MOSFET; (2)500-mA Continuous Current; (3)Thermal and Short-Circuit Protection; (4)Accurate Current Limit (0.75 A min, 1.25 A max); (5)Operating Range: 2.7 V to 5.5 V; (6)0.6-ms Typical Rise Time; (7)Undervoltage Lockout; (8)Deglitched Fault Report (OC); (9)No OC Glitch During Power Up; (10)Maximum Standby Supply Current: 1-μA (Single, Dual) or 2-μA (Triple, Quad); (11)Bidirectional Switch; (12)Ambient Temperature Range: -40 to 85℃; (13)ESD Protection; (14)UL Recognized, File Number E169910.

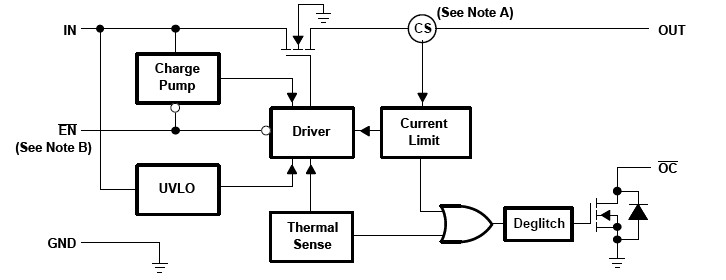

Diagrams
