The TDA2030A is an 18W Hi-Fi amplifier and 35W driver. The TDA2030A is a monolithic IC in Pentawatt package intended for use as low frequency class AB amplifier. With VS max = 44V it is particularly suited for more reliable applications without regulated supply and for 35W driver circuits using low-cost complementary pairs. The TDA2030A provides high output current and has very low harmonic and cross-over distortion. Further the TDA2030A incorporates a short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.
Parametrics
TDA2030A absolute maximum ratings: (1)Vs Supply Voltage: ±22 V; (2)Vi Input Voltage: Vs; (3)Vi Differential Input Voltage: ±15 V; (4)Io Peak Output Current (internally limited): 3.5 A; (5)Ptot Total Power Dissipation at Tcase = 90℃: 20 W; (6)Tstg, Tj Storage and Junction Temperature: –40 to + 150℃.
Features
TDA2030A features: (1)Vs Supply Voltage: ±6 to ±22 V; (2)Id Quiescent Drain Current: 50 to 80mA; (3)Ib Input Bias Current VS = ± 22V: 0.2 to 2μA; (4)Vos Input Offset Voltage VS = ± 22V: ±2 to ±20mV; (5)Ios Input Offset Current: ±20 to ± 200nA.

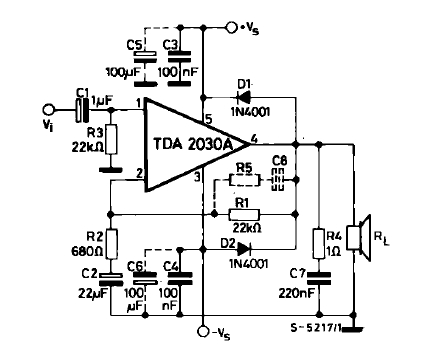

Diagrams
