Product Summary
The SP706SEN-L/TR is a Low Power Microprocessor. The SP706SEN-L/TR is a family of microprocessor (μP) supervisory circuits that integrate myriad components involved in discrete solutions which monitor power-supply and battery, in μP, and digital systems. The SP706SEN-L/TR will significantly improve system reliability and operational efficiency when compared to results obtained with discrete components. The features of the SP706SEN-L/TR include a watchdog timer, a μP reset, a Power Fail Comparator, and a manual-reset input. The SP706SEN-L/TR is ideal for +3.0V or +3.3V applications in automotive systems, computers, controllers, and intelligent instruments. The SP706SEN-L/TR is an ideal solution for systems in which critical monitoring of the power supply to the μP and related digital components is demanded.
Parametrics
SP706SEN-L/TR absolute maximum ratings: (1)Terminal Voltage (with respect to GND): -0.3V to +6.0V; (2)All Other Inputs: -0.3V to (VCC +3.0V); (3)Input Current: 20mA; (4)GND: 20mA; (5)Output Current (all outputs): 20mA; (6)ESD Rating: 2kV; (7)Continuous Power Dissipation Plastic DIP: 727mW; (8)SO: 471mW; (9)Mini SO: 330mW; (10)Storage Temperature Range: -65℃ to +160℃; (11)Lead Temperature (solding 10 sec): +300℃.
Features
SP706SEN-L/TR features: (1)RESET Pulse Width - 200ms; (2)Independent Watchdog Timer - 1.6 sec Timeout (SP706P/S/R/T); (3)40μA Maximum Supply Current; (4)Denounced TTL/CMOS Manual-Reset Input; (5)RESET Asserted Down to VCC = 1V; (6)WDI Can Be Left Floating, Disabling the Watchdog Function; (7)Built-In Vcc Glitch Immunity; (8)Voltage Monitor for Power Failure or Low Battery Warning; (9)Pin Compatible Enhancement to Industry Standards 706P/R/S/T and 708R/S/T.

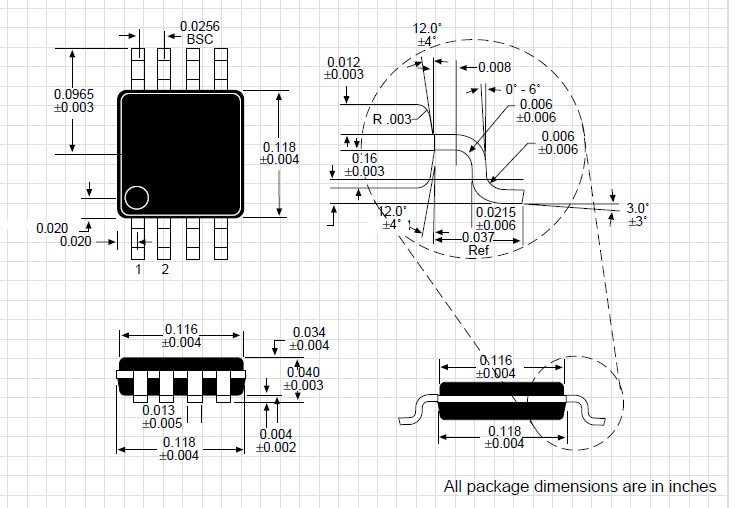

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP706SEN-L/TR |
Exar |
Supervisory Circuits LOW PWR MICROPROCESSOR |
Data Sheet |
|
|
||||||||||||
