SN74LV245

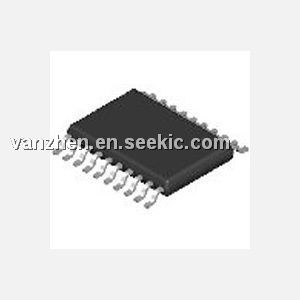

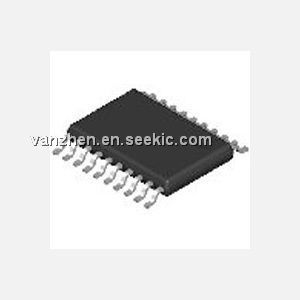

SN74LV245, octal bus transceiver, TSSOP, 2V, 5.5V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.20 / Piece
100 ~ 1000 :	0.18 / Piece
1000 ~ 100000 :	0.16 / Piece

PartNumber:: SN74LV245

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 100000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-02

From Other Seller

Part Number:SN74LV245
US $0.16 - 0.20
Quantity:

piece

Product Summary

The SN74LV245 is an octal bus transceiver.

Parametrics

SN74LV245 absolute maximum ratings : (1)Supply voltage range, VCC : -0.5 V to 7 V; (2)Input voltage range, VI: Except I/O ports : -0.5 V to 7 V; (3)I/O ports : -0.5 V to 7 V; (4)Voltage range applied to any output in the high-impedance or power-off state, VO : -0.5 V to 7 V; (5)Output voltage range applied in the high or low state, VO : -0.5 V to VCC + 0.5 V; (6)Input clamp current, IIK (VI < 0) : -20 mA; (7)Output clamp current, IOK (VO < 0) : -50 mA; (8)Continuous output current, IO (VO = 0 to VCC) : ±35 mA; (9)Continuous current through VCC or GND : ±70 mA; (10)Package thermal impedance, θJA (see Note 3): DB package : 70℃/W; (11)(see Note 3): DGV package : 92℃/W; (12)(see Note 3): DW package: 58℃/W; (13)(see Note 3): GQN package : 78℃/W; (14)(see Note 3): NS package: 60℃/W; (15)(see Note 3): PW package : 83℃/W; (16)(see Note 4): RGY package : 37℃/W; (17)Storage temperature range:-65℃ to 150℃.

Features

SN74LV245 features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 6.5 ns at 5 V; (3)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25℃; (5)Support Mixed-Mode Voltage Operation on All Ports; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17.
