SN74AHC74D

flip-flop, -0.5 to 7V, ±50mA, SIOC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: SN74AHC74D

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:SN74AHC74D
US $0.30 - 0.50
Quantity:

piece

Product Summary

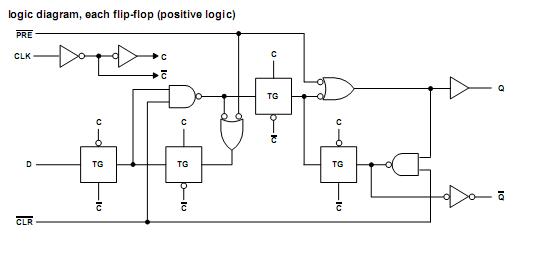

The SN74AHC74D is a dual positive-edge-triggered devices are D-type flip-flop. When PRE and CLR of the SN74AHC74D are inactive (high) , data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse.

Parametrics

SN74AHC74D absolute maximum ratings: (1) Supply voltage range, VCC: -0.5 to 7V; (2) Input voltage range, VI: -0.5 to 7V; (3) Output voltage range, VO: -0.5 to Vcc +0.5V; (4) Input clamp current, IIK (VI<0) : -20mA; (5) Output clamp current, IOK (Vo< 0 or Vo > Vcc ) : ±20mA; (6) Continuous output current, Io (Vo=0 to Vcc) : ±25mA; (7) Continuous current through Vcc or GND: ±50mA; (8) Storage temperature range, Tstg: -65 to +150°C.

Features

SN74AHC74D features: (1) Operating Range 2-V to 5.5-V VCC; (2) Latch-Up Performance Exceeds 250 mA Per JESD 17; (3) ESD Protection Exceeds JESD 22: C 2000-V Human-Body Model (A114-A) , 200-V Machine Model (A115-A) ,1000-V Charged-Device Model (C101) .
